Beamline
The X-Ray Fluorescence (XRF) beamline was designed, funded and assembled by staff of EST. The beamline is built downstream of a bending magnet, section 10.1 of EST storage ring. A wide energy range (2-14 keV) is accessible thanks to different double crystals and multilayers, as summarized in the table below.
|
Crystals
|
Si (111)
|
3700 - 14 000 eV
|
|
InSb
(under commissioning)
|
2000 - 3700 eV
|
|
Multilayers
|
High
Energy: RuB4C Coating
|
4000 - 14 000 eV
|
|
Medium
Energy: NiC Coating
|
1500 - 8000 eV
|
|
Low
Energy: RuB4C Coating
|
700 - 1800 eV
|
|
Resolving Power
|
Si (111)
|
~ 1 eV @ 7 000 eV
|
|
InSb (expected
performance)
|
~ 1 eV @ 2 200 eV
|
|
Multilayers
|
~ 55 eV @ 1
000 eV
~ 180 eV @
14 000 eV
|
|
Re-imaged
source, at
23 m from the exit slit (hor x ver, microns)
|
450 x 300
|
|
Angular
divergence (mrad)
|
0.15
|
|
Transmitted
flux (ph/s) @ 5500 eV, mode 2 GeV Si (111)
|
5 109
|

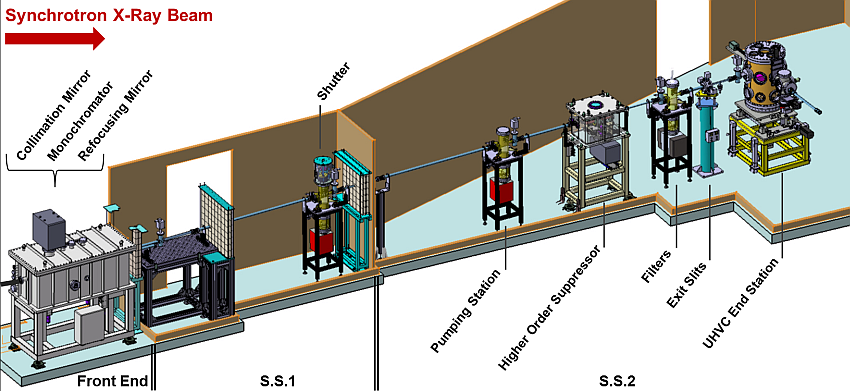

Layout of the beamline (courtesy of EST):
