WDXRF

WDXRF​


The first XRF spectrometers were built following the achievements in construction of goniometers for X-ray diffractometers. Radiation from the x-ray tube is passed through Soller collimators as to shape a parallel beam impinging to the sample surface. Further, parallel characteristic x-rays emitted by the sample reach a monochromator device that is tilted within an interval of angles as to separate the x-rays by wavelength before they reach the detector. The wavelength resolution of the diffracting device makes possible to obtain a wavelength resolution that surpasses that attained by EDXRF spectrometers.

WDXRF require of periodic verification of the alignment of tis components. The improvements in technology have made possible to operate quite robust instruments.

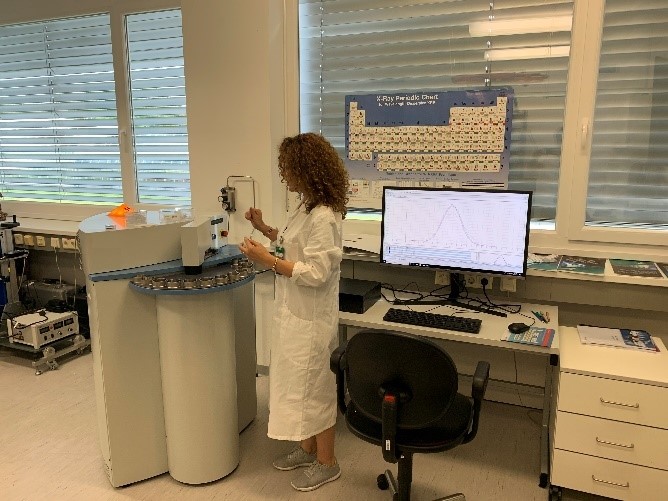

The instrument available at NSIL has the following characteristics:

x-ray tube



Anode material

Rh

Max. HV (kV)

50

Max current (mA)

4 10

Detector

flow proportional counter + scintillation counter

Measurement mode

Sequential

Goniometer

SmartGonio

Angular span



Spectral resolution (eV, at Ca-Ka)

15

Diffraction crystals

AX06, InSb and LiF200

Calibrations for quantitative analysis:

Soil/sediments, Ferro-Alloys, Petrochemical Products
